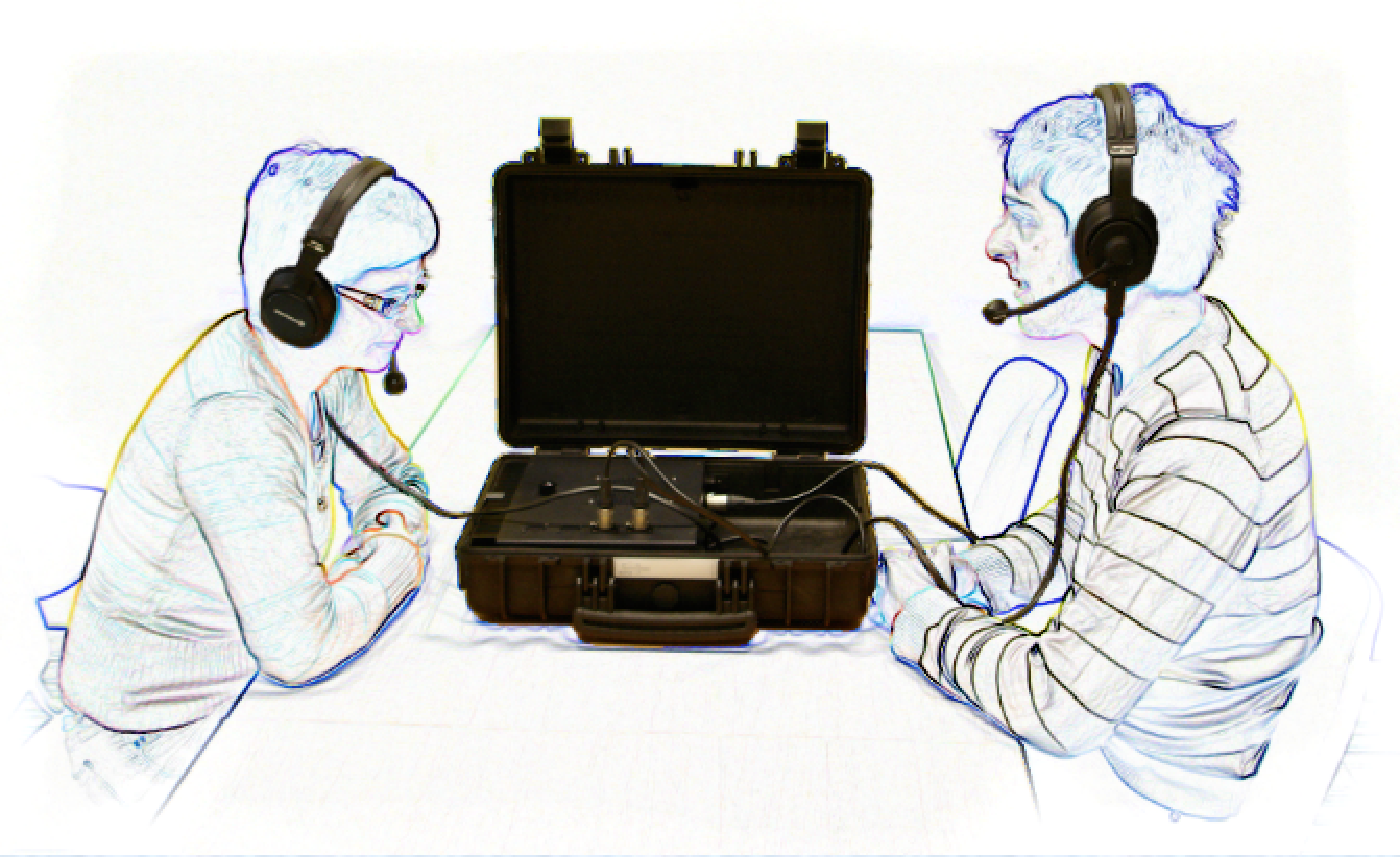

The device consists of the main unit, headphones with integrated microphone and the protective suitcase.
The main unit is built in the aluminium casing. The unit consists of an audio speaker, all interfaces and switches.
In addition, the main unit contains a Pb-gel battery, which makes working with the device possible even without the external power supply.
# Base unit
# Headphones
# Protective Case.
The kit is supplied with two appropriate cable as follows:
# Cable with adapter for connection to the mains voltage 230VAC,
# Cable to connect the 12VDC car power outlet (cigarette lighter connector).
The protective suitcase is designed in such a way that everything needed is located inside the suitcase: the main unit, headphones and all the cables.
Headphones
Frequency response:
40 – 12.000Hz
Nominal impedance:
80Ω
Ambient noise attenuation:
približno 16dBA
egarding to system configuration, 2, 3 or 4 headphones can be connected to main unit
Protective suitcase
The contents of the suitcase is 100% protected against:
moisture and water (waterproof)
corrosion
dust, sand and dirt
shocks and collisions
IP67 certificate
Power supply
main power:
230VAC
car plug:
12VDC
internal battery:
12VDC, 2,1Ah
